Gear for Steel Frames:

Multi-Stages and adjustable angle of furniture parts. The gears are suitable for steel frames of sofa, floor chairs and etc..



ITEM

GEAR

SAMPLE

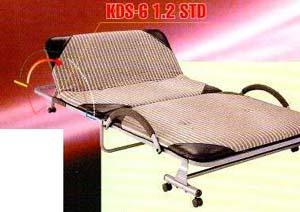

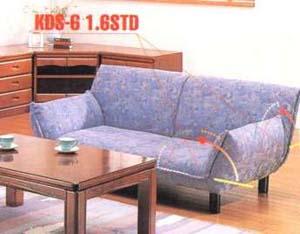

KDS-6

Stage:6 Positions

Size :Small

H of Back :Below 550mm

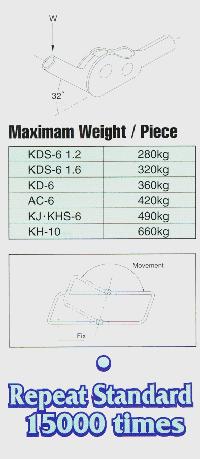

Max. Loading:300kg

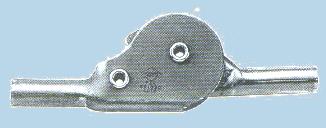

KD-6

Stage:6 Positions

Size :Middle

H of Back:550-700mm

Max. Loading:360kg

AC-6

Stage:6 Positions

Size :Big

H of Back:700-800mm

Max. Loading:420kg

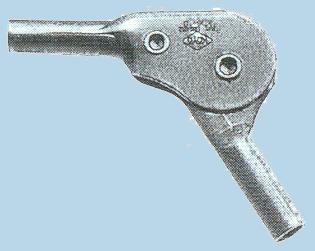

KDS-6R

Stage:3 - 6 Positions

Size :Small

H of Back :Below 500mm

Max. Loading:280kg

FGS-7

Stage:7 Positions

Size :Small

H of Back :Below 500mm

Max. Loading:300kg

KF-5

Stage:5 Positions

Size :Middle

H of Back:550-700mm

Max. Loading:360kg
